SS/E-03 Safety Door Switch for CNC Machines and Industrial Equipment

In CNC machining and industrial automation, a safety door is more than a physical barrier. It is part of the machine’s safety system.

When an operator opens a machine door, the equipment may still contain rotating tools, moving axes, or other hazardous mechanical movements. A reliable safety door switch helps monitor the door position and provides an electrical signal to the machine control system, helping prevent operation when the door is not in the required safe position.

The SS/E-03 Safety Door Switch from Shandong Shansen CNC Technology Co., Ltd. is designed for CNC machines and industrial equipment that require reliable door interlocking and position monitoring.

Why Is a Reliable Safety Door Switch Important?

Machine doors are frequently opened and closed during loading, unloading, inspection, tool changes, cleaning, and maintenance.

This means the safety switch is exposed to repeated mechanical operation throughout the machine’s service life.

A suitable safety door switch needs to provide more than simple electrical switching. It should offer:

• Reliable mechanical operation
• Stable electrical switching
• Adequate protection against dust and water
• Flexible installation
• Long service life
• Reliable interaction with the machine control system

For CNC machine builders and system integrators, these factors directly affect machine safety, maintenance requirements, and long-term operating reliability.

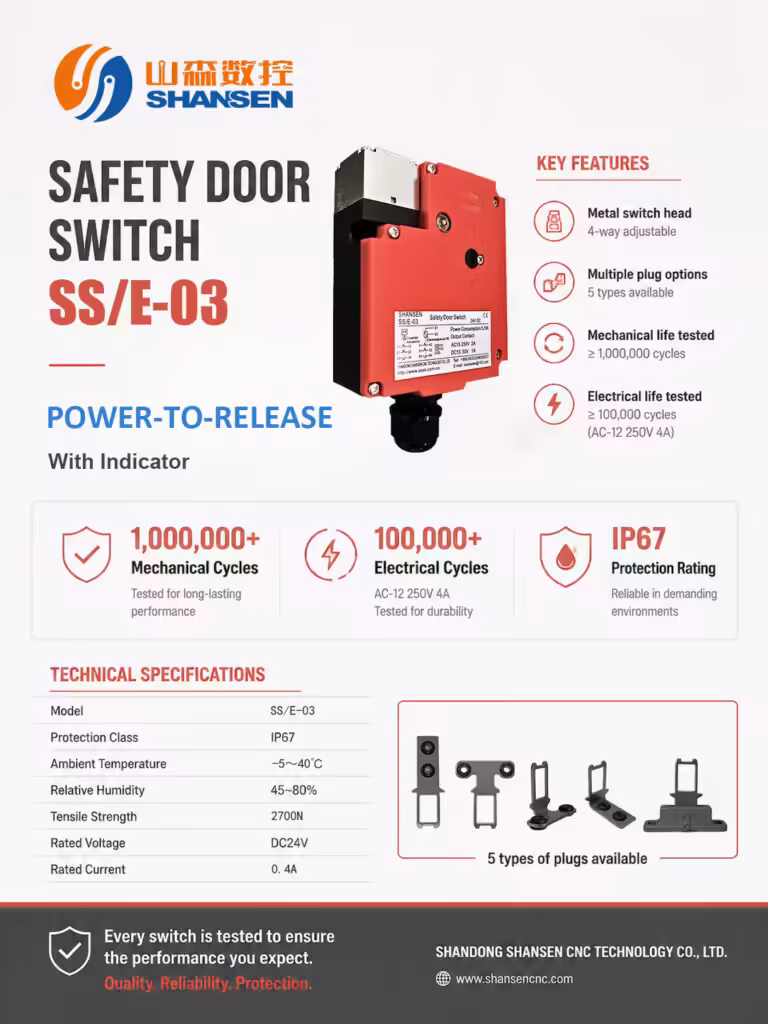

SS/E-03 Safety Door Switch

The SS/E-03 is a compact industrial safety door switch with a power-to-release design and indicator.

Its metal switch head can be adjusted in four directions, allowing greater flexibility when installing the switch on different machine door structures.

The switch is also available with five types of plugs/actuators, providing additional options for different installation requirements.

Key Features

Power-to-release design

The power-to-release configuration is designed for applications where the machine door needs to remain locked until the appropriate release signal is provided.

An integrated indicator provides a visible indication of the switch status, making it easier for operators and maintenance personnel to identify the operating condition.

4-way adjustable metal switch head

The metal switch head can be adjusted in four directions.

This allows the switch to accommodate different door opening directions and mounting arrangements while maintaining a practical installation position.

Five plug options

Different machine door structures require different actuator configurations.

SS/E-03 provides five available plug/actuator options, giving machine builders more flexibility during mechanical design and installation.

IP67 protection

The switch has an IP67 protection rating.

This makes it suitable for demanding industrial environments where the safety switch may be exposed to coolant, moisture, dust, and other contaminants commonly found around CNC machines.

Designed for Repeated Machine Operation

A safety door switch on a CNC machine may operate thousands of times during normal production.

Repeated mechanical movement places continuous demands on the switch mechanism. Wear, deformation, or poor alignment can eventually affect switch operation.

For this reason, mechanical durability is an important consideration when selecting a safety door switch.

The SS/E-03 has undergone mechanical life testing of 1,000,000+ cycles.

This testing is intended to verify the durability of the mechanical mechanism under repeated operation and provide a higher level of confidence for long-term machine applications.

The electrical contacts have also undergone 100,000+ electrical cycles testing under the specified test conditions.

Built for CNC Machine Applications

Safety door switches are commonly installed on enclosed CNC machines, machining centers, turning centers, grinding machines, and other automated equipment where access to hazardous moving parts needs to be controlled.

Typical applications include:

CNC Machine Tools

Machine doors can be monitored and interlocked with the CNC control system.

When the door is opened or the required locking condition is not met, the control system can respond according to the machine’s safety logic.

Machining Centers

Vertical and horizontal machining centers frequently use enclosed workspaces to contain chips, coolant, and moving components.

A reliable door switch helps integrate the physical door with the machine’s electrical safety circuit.

Automatic Production Equipment

Automated production lines may contain moving mechanisms, conveyors, robots, or other powered components.

Safety door switches can be used as part of the access protection system around these hazardous areas.

Installation Flexibility

Machine builders rarely have identical door structures.

Door dimensions, hinge positions, opening directions, mounting locations, and actuator positions can vary significantly between machine models.

The SS/E-03 addresses this requirement through its adjustable metal switch head and multiple actuator options.

When installing a safety door switch, the actuator and switch should be properly aligned.

The door should reach its intended closed position without excessive lateral force or mechanical interference. Correct alignment is important for maintaining stable operation and reducing unnecessary mechanical stress on the switch.

The final safety circuit should always be designed and validated according to the machine’s applicable safety requirements.

Technical Specifications

Parameter	SS/E-03
Model	SS/E-03
Protection Class	IP67
Ambient Temperature	-5°C to 40°C
Relative Humidity	45% to 80%
Tensile Strength	2700 N
Rated Voltage	DC 24V
Rated Current	0.4 A
Mechanical Life	1,000,000+ cycles tested
Electrical Life	100,000+ cycles tested
Switch Head	Metal, 4-way adjustable
Plug/Actuator Options	5 types

For complete electrical specifications, wiring information, dimensions, and applicable contact ratings, please refer to the product technical documentation.

Quality and Reliability Testing

Safety-related machine components need consistent manufacturing quality because their performance directly affects machine operation.

At Shansen CNC, our products are tested during development and production to verify their mechanical and electrical performance.

For the SS/E-03, durability testing includes:

• Mechanical cycle testing
• Electrical cycle testing
• Protection performance testing
• Functional inspection
• Product consistency checks

The purpose of these tests is not simply to achieve a laboratory figure. It is to ensure that each switch can provide the performance expected in practical industrial applications.

A Practical Choice for Machine Builders

For CNC machine manufacturers and automation integrators, selecting a safety door switch involves balancing several requirements:

Safety:
The switch must integrate reliably with the machine’s safety control system.

Durability:
The mechanism must withstand repeated door operation.

Installation:
The switch and actuator should accommodate the machine’s mechanical structure.

Environmental protection:
The product should be suitable for the actual conditions around the machine.

Supply consistency:
Stable product quality and manufacturing capability are important for machine builders producing multiple machines or models.

With its adjustable metal switch head, five actuator options, IP67 protection, and tested mechanical durability, the SS/E-03 provides a flexible solution for CNC machine and industrial equipment applications.

Looking for a Safety Door Switch for Your CNC Machine?

Shansen CNC supplies safety door switches and other electrical accessories for CNC machine tools and industrial automation applications.

If you are developing a new machine, replacing an existing safety door switch, or looking for an OEM/ODM solution, please contact us with your machine door structure, electrical requirements, and application conditions.

Our technical team can help evaluate the appropriate switch configuration and actuator option for your application.
